GridView
Examples#

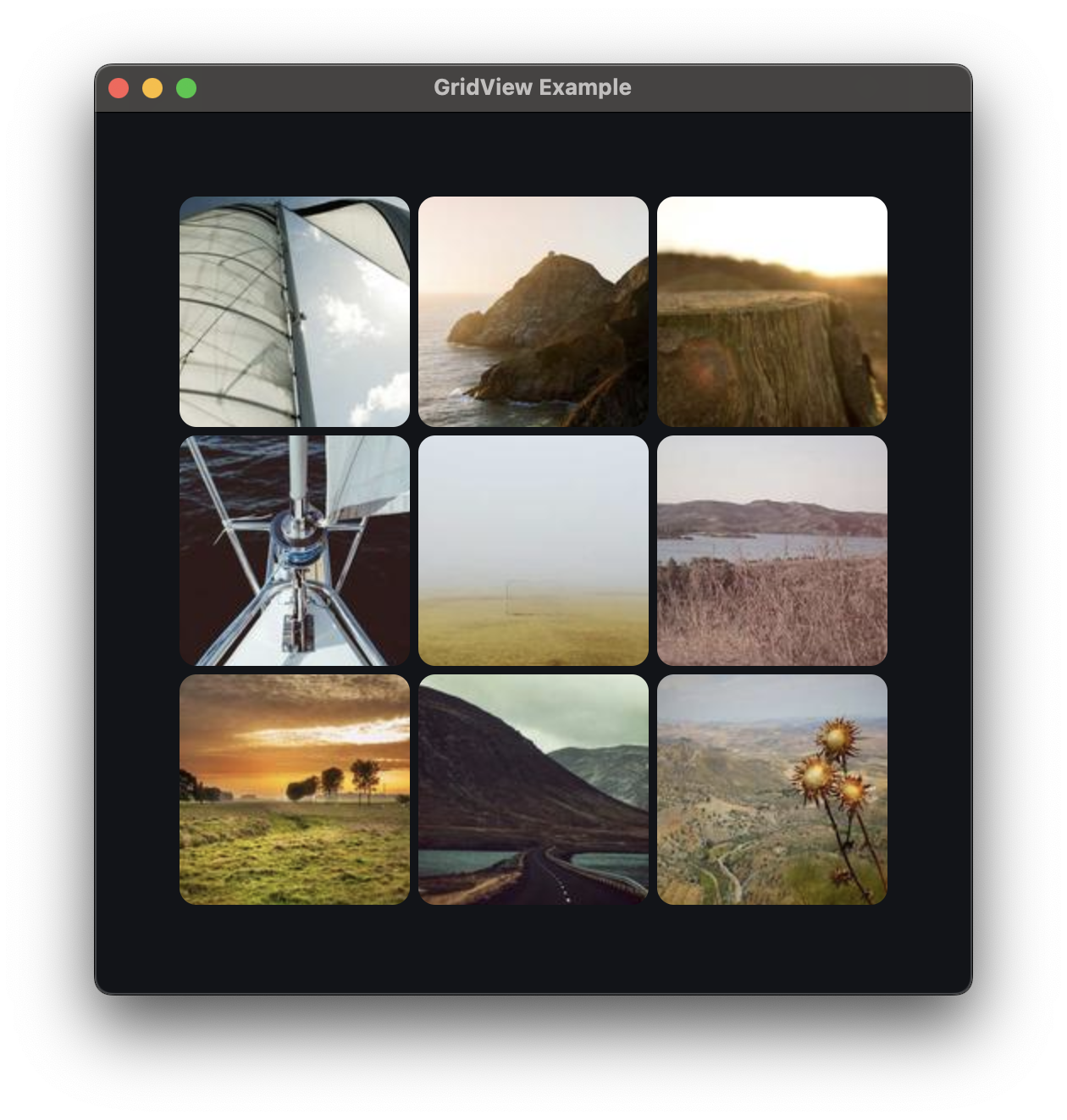

Photo gallery#
import flet as ft
def main(page: ft.Page):
page.title = "GridView Example"
page.theme_mode = ft.ThemeMode.DARK
page.padding = 50
page.add(
ft.GridView(
expand=1,
runs_count=5,
max_extent=150,
child_aspect_ratio=1.0,
spacing=5,
run_spacing=5,
controls=[
ft.Image(
src=f"https://picsum.photos/150/150?{i}",
fit=ft.BoxFit.NONE,
repeat=ft.ImageRepeat.NO_REPEAT,
border_radius=ft.BorderRadius.all(10),
)
for i in range(0, 60)
],
)
)
ft.run(main)
Bases: LayoutControl, ScrollableControl, AdaptiveControl
A scrollable, 2D array of controls.
It is very effective for large lists (thousands of items).
Prefer it over wrapping Columns or
Rows for smooth scrolling.
cache_extent: Number | None = None
Items that fall in the cache area (area before or after the visible area that are about to become visible when the user scrolls) are laid out even though they are not (yet) visible on screen.
The cacheExtent describes how many pixels the cache area extends before the leading edge and after the trailing edge of the viewport.
The total extent, which the viewport will try to cover with controls, is
cache_extent before the leading edge + extent of the main axis + cache_extent
after the trailing edge.
child_aspect_ratio: Number = 1.0
The ratio of the cross-axis to the main-axis extent of each child.
clip_behavior: ClipBehavior | None = None
The content will be clipped (or not) according to this option.
A list of controls to display inside grid.
reverse: bool = False
Whether the scroll view scrolls in the reading direction.
For example, if the reading direction is left-to-right and horizontal is True,
then the scroll view scrolls from left to right when reverse is False
and from right to left when reverse is True.
Similarly, if horizontal is False, then the scroll view scrolls from top
to bottom when reverse is False and from bottom to top when reverse is True.
run_spacing: Number = 10
The number of logical pixels between each child along the cross axis.
