ShaderMask

Examples

Live example

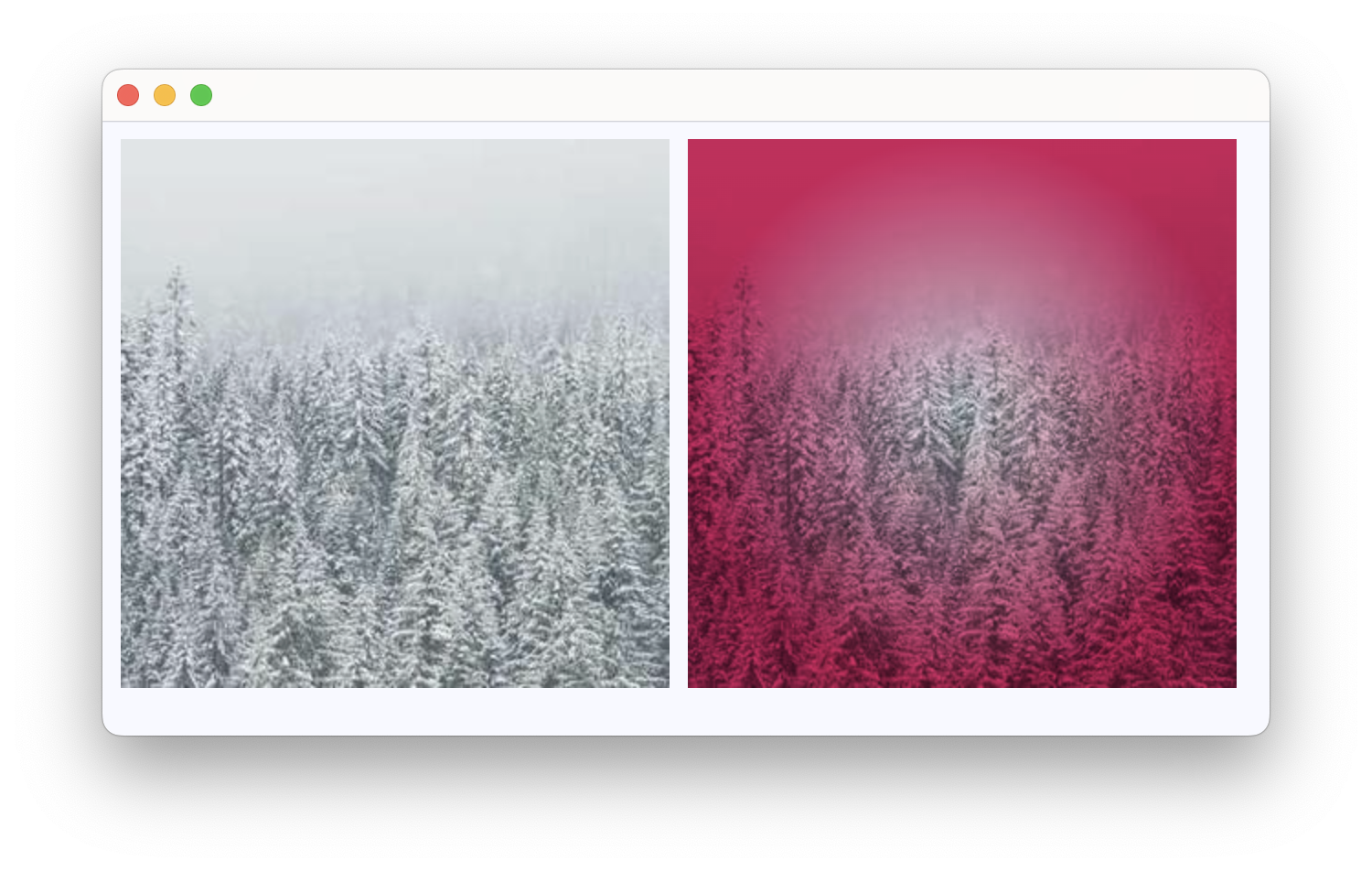

Pink glow around image edges

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Row(
            controls=[
                ft.Image(
                    src="https://picsum.photos/300/300?1",
                    width=300,
                    height=300,
                    fit=ft.BoxFit.FILL,
                ),
                ft.ShaderMask(
                    blend_mode=ft.BlendMode.MULTIPLY,
                    shader=ft.RadialGradient(
                        center=ft.Alignment.CENTER,
                        radius=0.5,
                        colors=[ft.Colors.WHITE, ft.Colors.PINK],
                        tile_mode=ft.GradientTileMode.CLAMP,
                    ),
                    content=ft.Image(
                        src="https://picsum.photos/300/300?1",
                        width=300,
                        height=300,
                        fit=ft.BoxFit.FILL,
                    ),
                ),
            ]
        )
    )


ft.run(main)

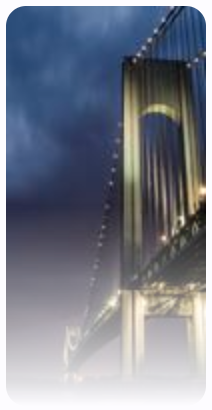

Fade out bottom edge of an image

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Row(
            controls=[
                ft.ShaderMask(
                    content=ft.Image(src="https://picsum.photos/200/200?2"),
                    blend_mode=ft.BlendMode.DST_IN,
                    border_radius=10,
                    shader=ft.LinearGradient(
                        begin=ft.Alignment.TOP_CENTER,
                        end=ft.Alignment.BOTTOM_CENTER,
                        colors=[ft.Colors.BLACK, ft.Colors.TRANSPARENT],
                        stops=[0.5, 1.0],
                    ),
                ),
            ]
        )
    )


ft.run(main)

Applying linear and radial gradients/shaders

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Row(
            controls=[
                ft.ShaderMask(
                    blend_mode=ft.BlendMode.COLOR_BURN,
                    shader=ft.RadialGradient(
                        center=ft.Alignment.TOP_LEFT,
                        radius=1.0,
                        colors=[ft.Colors.YELLOW, ft.Colors.DEEP_ORANGE_900],
                        tile_mode=ft.GradientTileMode.CLAMP,
                    ),
                    content=ft.Image(
                        src="https://picsum.photos/200/300?1",
                        width=400,
                        height=400,
                        fit=ft.BoxFit.FILL,
                    ),
                ),
                ft.ShaderMask(
                    blend_mode=ft.BlendMode.DST_IN,
                    shader=ft.LinearGradient(
                        begin=ft.Alignment.TOP_CENTER,
                        end=ft.Alignment.BOTTOM_CENTER,
                        colors=[ft.Colors.BLACK, ft.Colors.TRANSPARENT],
                        stops=[0.5, 1.0],
                    ),
                    content=ft.Image(src="https://picsum.photos/200/300?2"),
                ),
            ]
        )
    )


ft.run(main)

ShaderMask

Bases: LayoutControl

Applies a mask generated by a shader to its content.

For example, it can be used to gradually fade out the edge of a control by using a LinearGradient mask.

blend_mode

blend_mode: BlendMode = MODULATE

The blend mode to use when applying the shader to the content.

border_radius

border_radius: BorderRadiusValue | None = None

The radius of the mask.

content

content: Control | None = None

The Control to which the shader is applied.

shader

shader: Gradient

Use gradient as a shader.
